# 2D velocity field analysis

Hello,

I am attempting to analyze a time series of .csv files. Each file corresponds to a time point. Within each file is X position, Y position, Velocity in X direction (u), Velocity in Y direction (v). The entire series of .csv files can be accessed here: Box

I have not used ParaView before but I have found so many helpful posts. However, detail was lacking so I decided to document my pipeline and ask how I can achieve my goal, which is to be able to select a region of the flow field and produce a Velocity (relative to flow direction) vs. Time plot. Here is what one flow field at one time point looks like:

My pipeline is as follows:

The raw .csv table looks like this (371 rows). After opening a .csv file, I learned I need to change my field delimiter to a semicolon. I am not sure about the other check boxes:

First, I convert the .csv data into point data using Table To Points filter. There is no Z dimension (2D points), so â€śVelocity v[m/s]â€ť is just a place holder in this case. I selected â€śKeep All Data Arraysâ€ť because I need all 4 columns and I couldnâ€™t select those I needed later on if I did not check this:

Now the new table looks like this:

What is â€śPoints_Magnitudeâ€ť and how is it useful?

I know that I need to convert my 2 scalars (Velocity u and Velocity v) into a vector, which will result in 3 columns: X position, Y position, and the velocity vector. I use â€śCalculatorâ€ť to multiply the scalars by iHat and jHat respectively (did I do this correctly?). I called the new values â€śVelocity calculate (mm/s)â€ť:

Here is the resulting table:

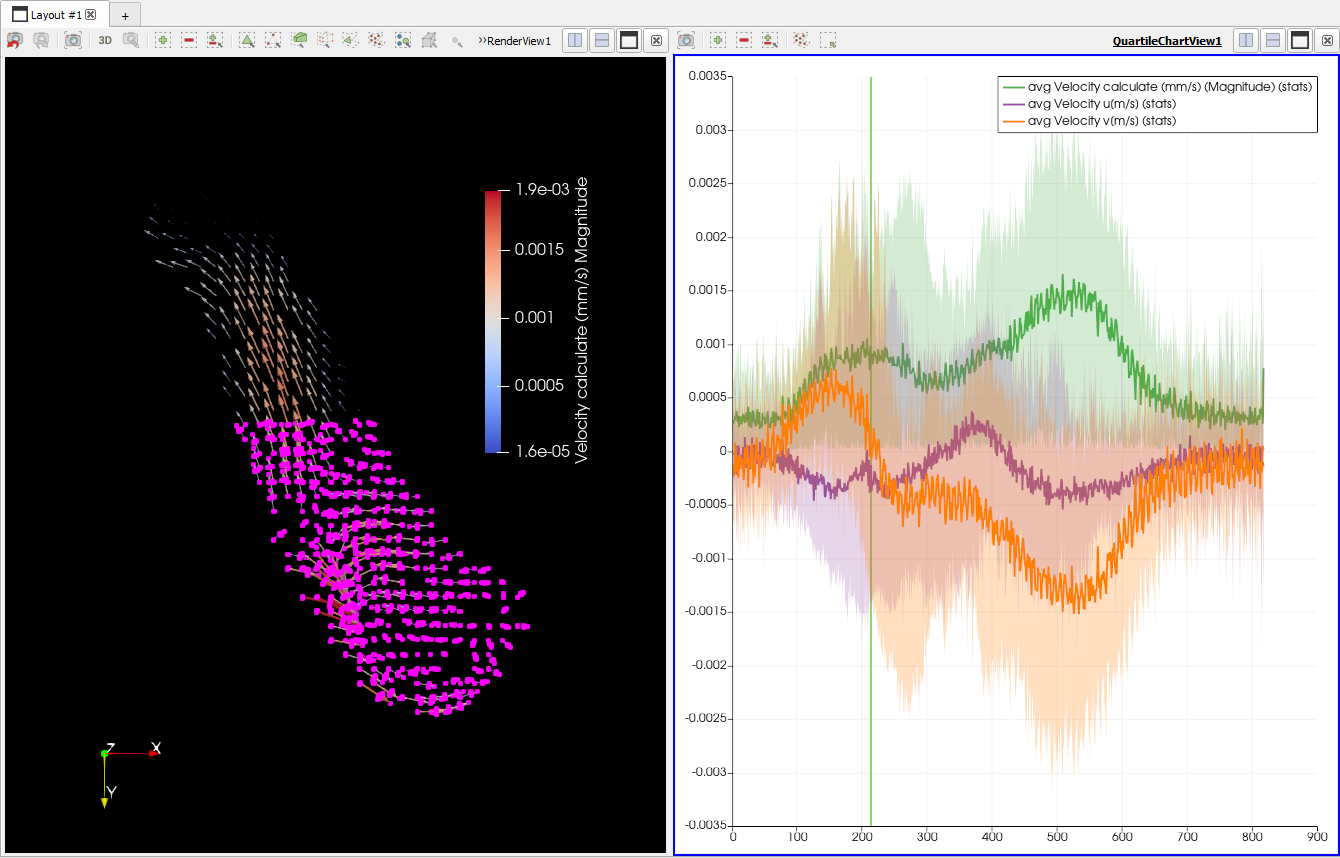

And when I use the Plot Selection Over Time filter and select part of my vector field I get this plot:

My problem is, I need to quantify velocity in the flow direction (bottom right to top left), so that I can plot negative velocity. I know I can plot over a line (but havenâ€™t gotten that to work).

How do I 1) quantify negative velocity (relative to flow direction), 2) a specified region, and 3) over time?

Thank you for following along!

Hello,

This is in response to the first question.

1. quantify negative velocity

The following steps are possible:

1. Create a direction vector field `dir` of length 1 using Python Calculator:
Expression: `np.array([-1/sqrt(2), -1/sqrt(2), 0])`
Array Name: `dir`
2. Project the velocity vector `Velocity` onto the direction vector `dir` using the Python Calculator:
Expression: `dot(Velocity, dir)*dir`
Array Name: `projected`

The result of projecting the velocity vectors is shown in the figure below. These vectors may be quantified by statistical processing.

2 Likes

This is the length (or norm) of the vector between the origin and the point. If I understand correctly, this is not relevant in your case.

1 Like
