Assembly nodes in Multiblock Inspector expanded too far down the hierarchy

Development
1

Hi all. I’ve implemented using PDC and vtkDataAssembly in my reader and it helps immensely, easier and much more efficient. One problem though: node hierarchy is expanded up to 4 levels down in the tree, and that’s unwieldy when there are too many level-3 nodes:
file
..model
body1
..face1
..face2
body2
…
body1000
…
Is there any way to control how far down that auto-expansion happens, or to turn off auto-expansion entirely?

2

Do you have a screenshot of the issue ?

3

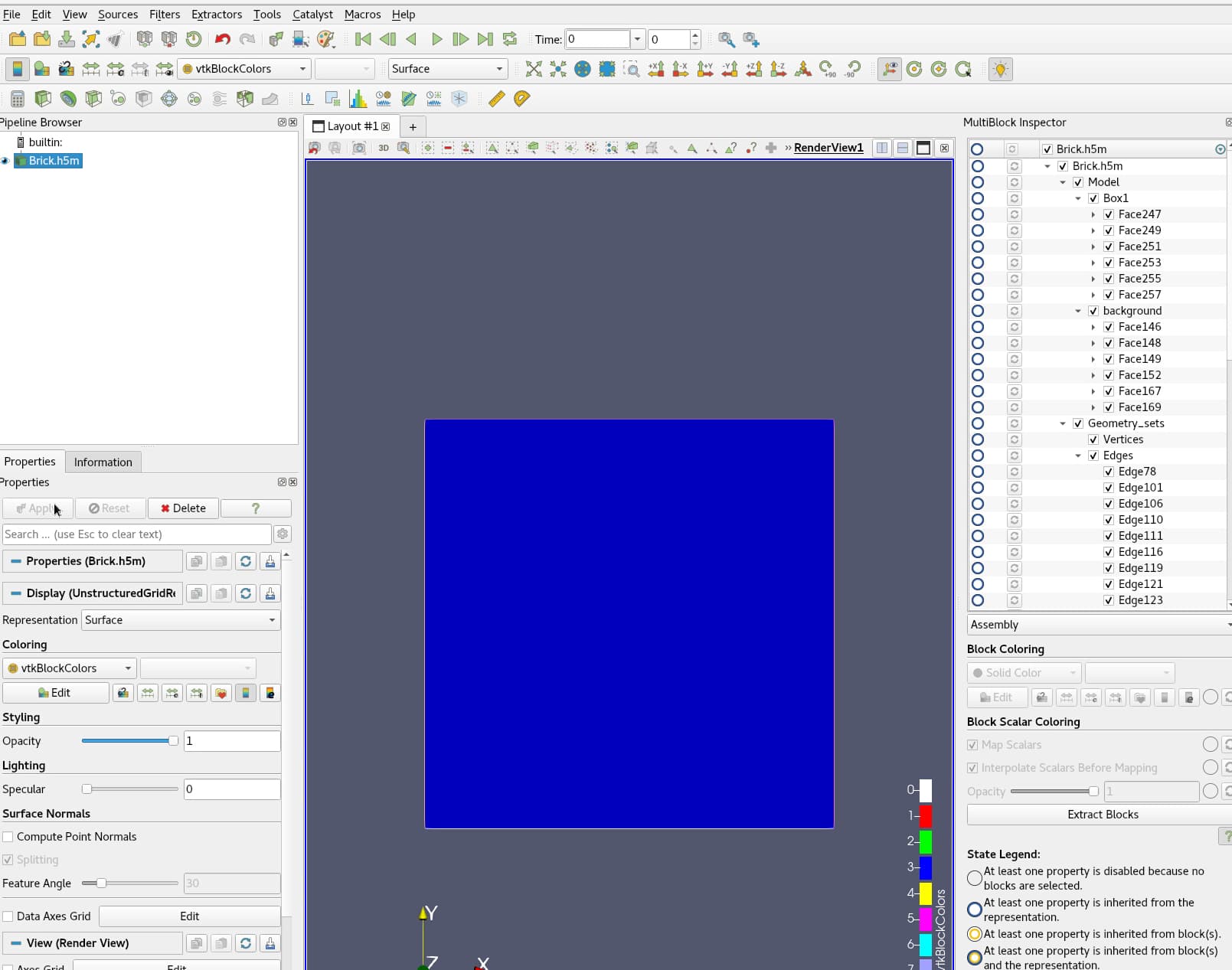

Here’s one for a simple box-in-box model:

image1609×1267 145 KB

Note, I’m renaming node 0 to the file name instead of the default name of “assembly”.
For models with many many bodies, this makes it very cumbersome to e.g. scroll down and un-check the “background” body if it’s later in the list.

4

I got it.

I’m afraid there is no such control yet, although I think it could be added at the widget level somehow.
