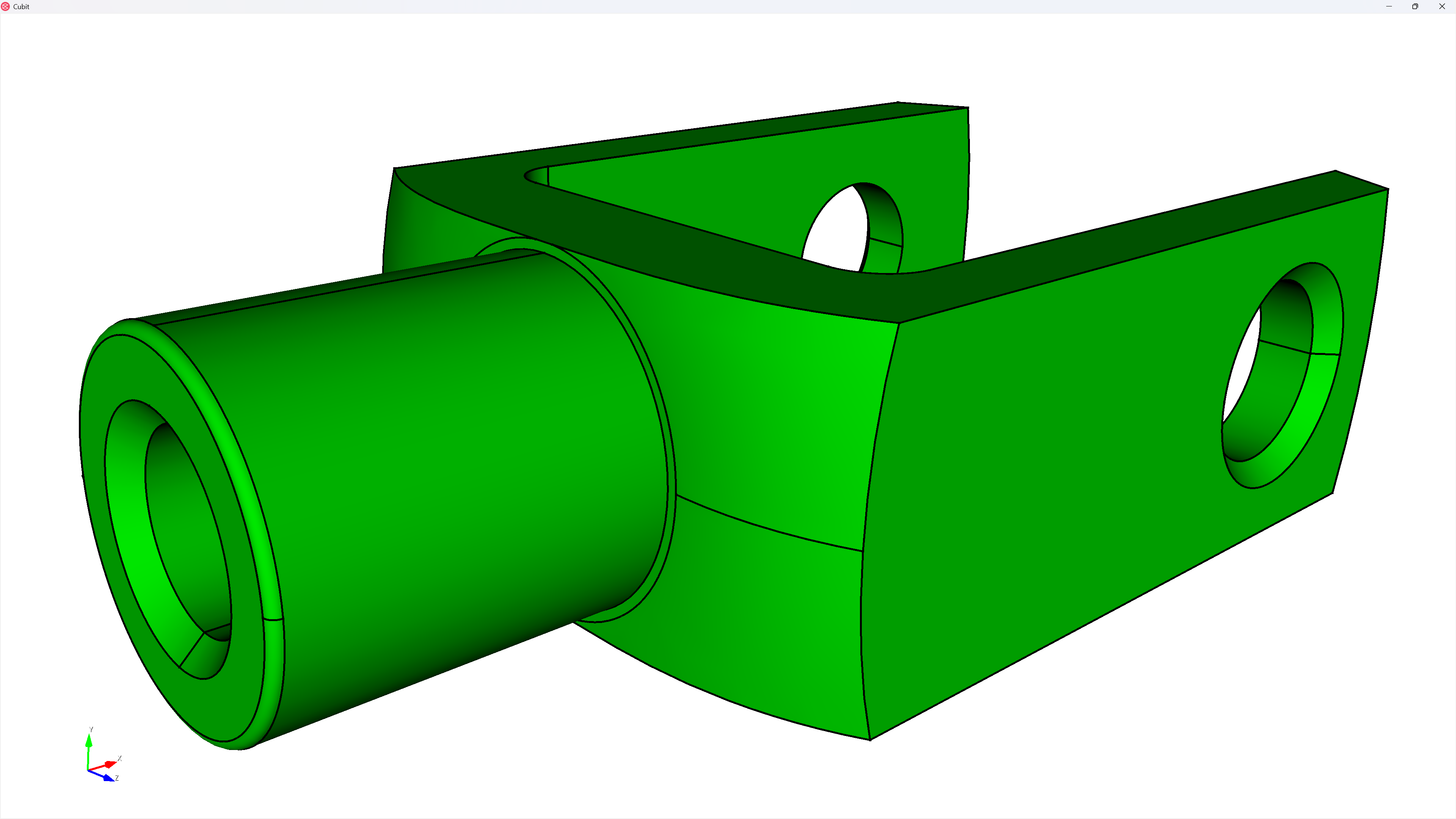

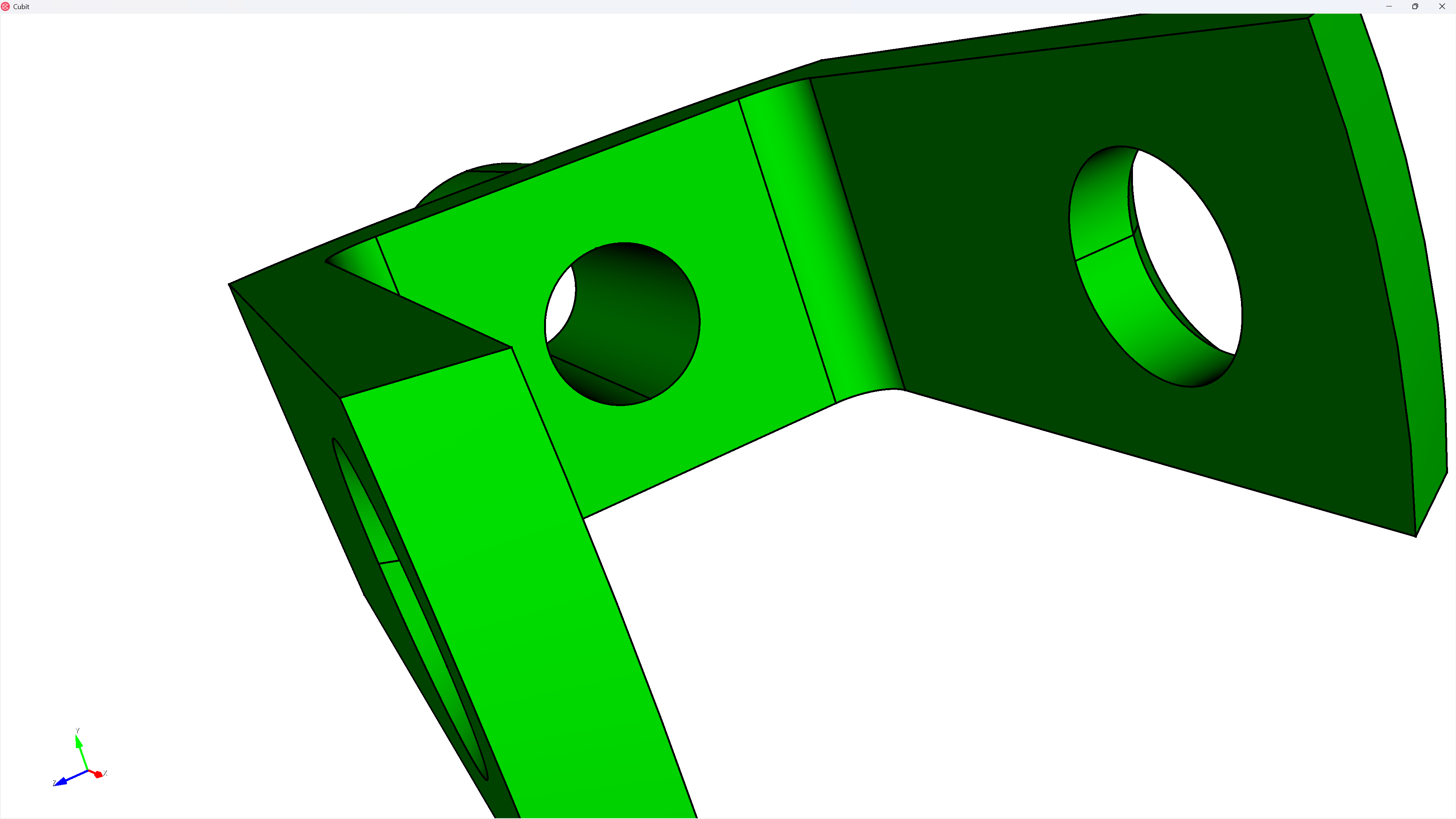

Below is a STEP file of a knuckle geometry. Here’s what it looks like rendered in Coreform Cubit:

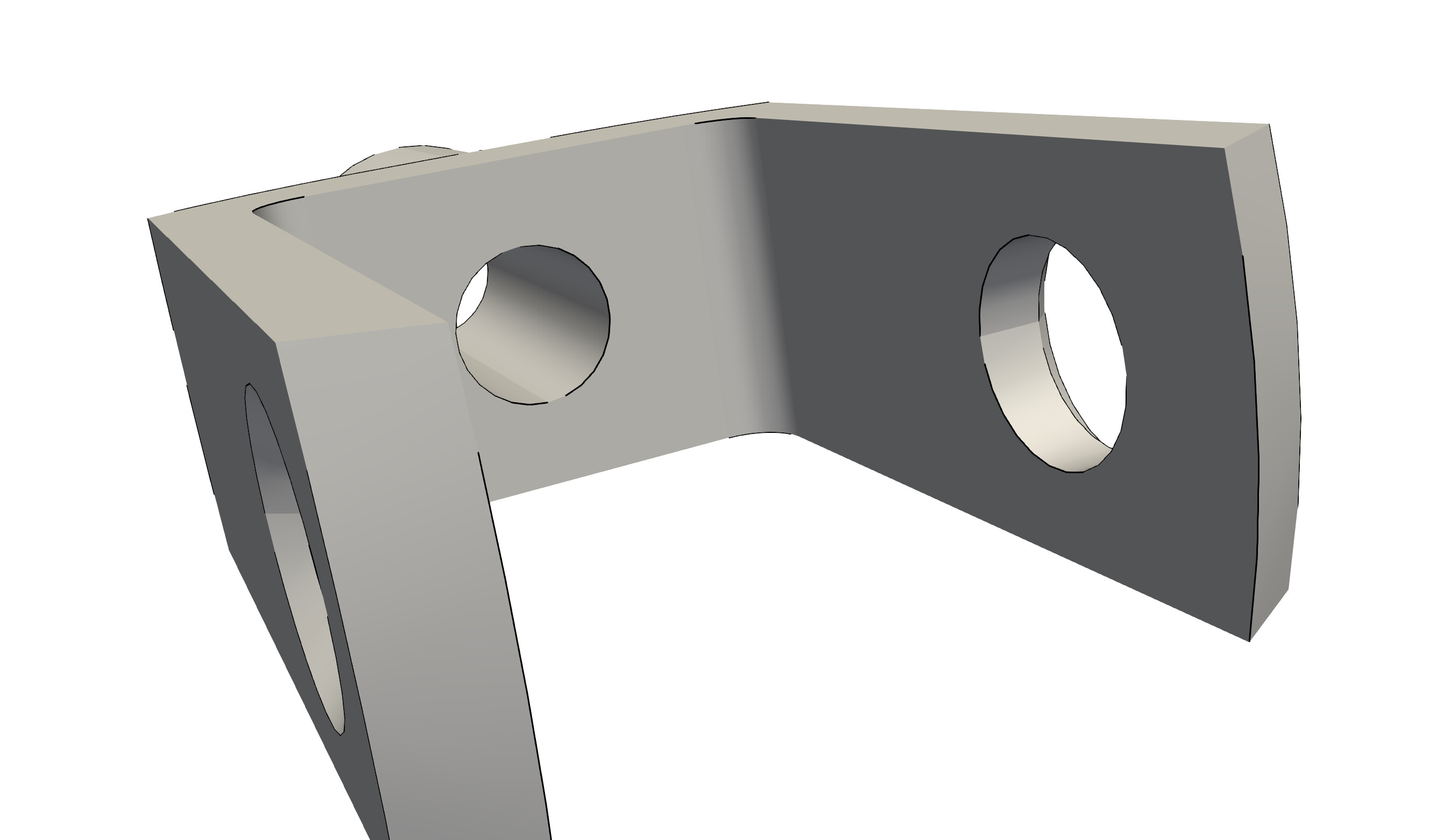

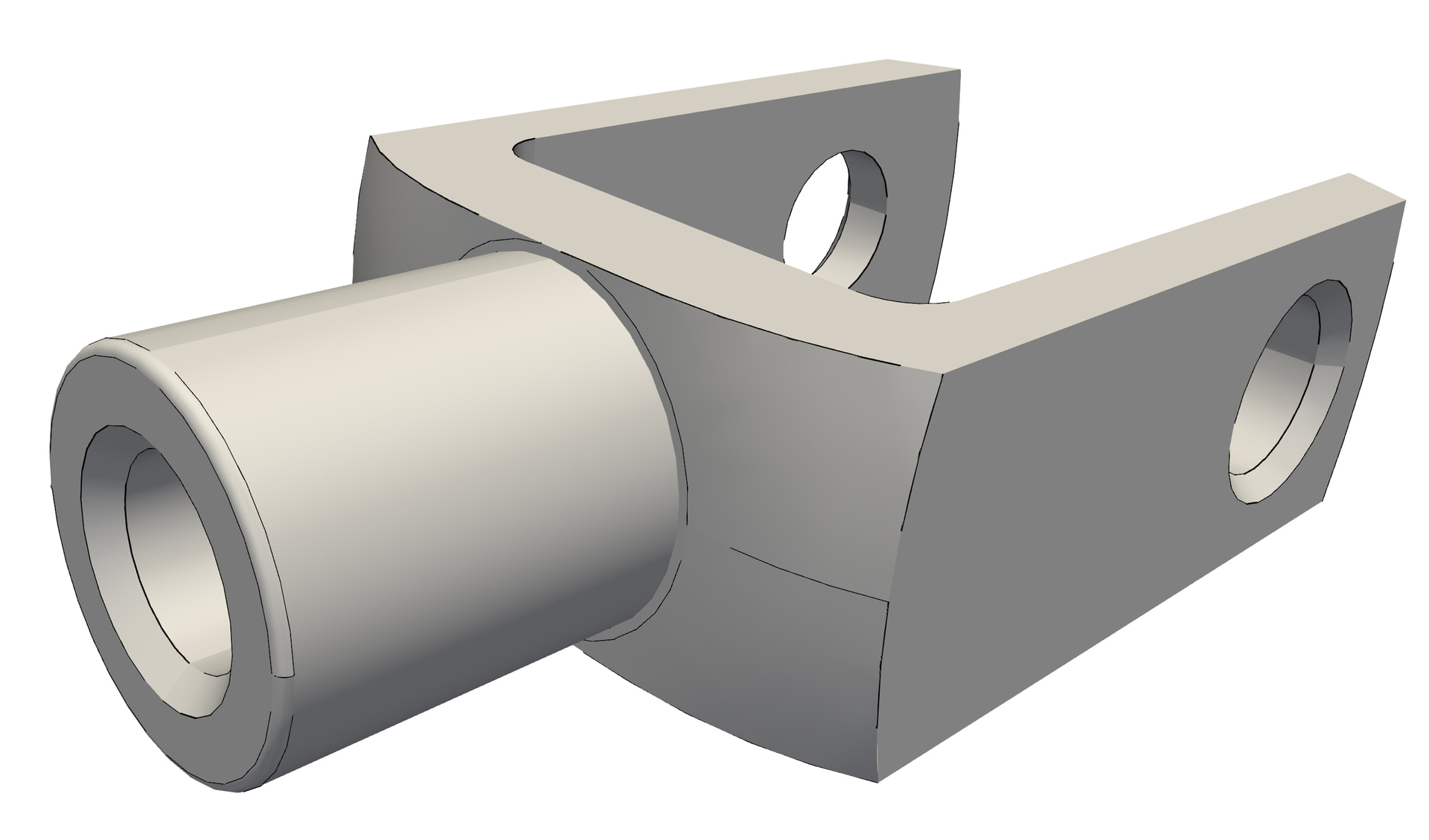

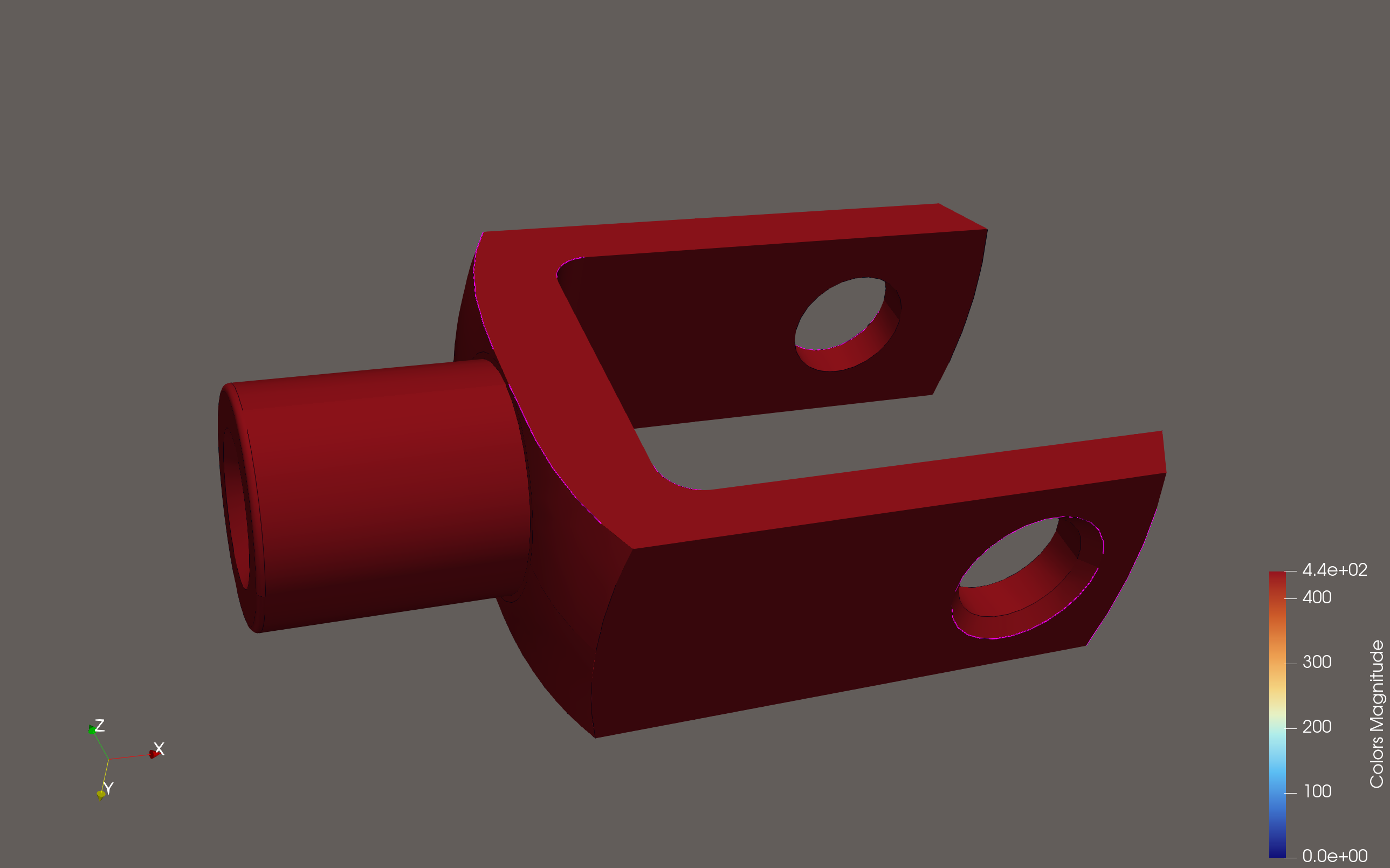

And here’s what it looks like in ParaView if I Read Wire and then Extract Cells by Type for surfaces and lines (state file at the bottom).
It looks like the lines terminate prematurely (or start late?) and some curves don’t even exist at all.
knuckle.stp (55.5 KB)
knuckle_step.pvsm (463.7 KB)
Client Information:
Version: 6.1.0
VTK Version: 9.6.1
Qt Version: 6.9.0
vtkIdType size: 64bits
Embedded Python: On
Python Library Path: C:\Program Files\ParaView 6.1.0\bin\Lib
Python Library Version: 3.12.7 (tags/v3.12.7:0b05ead, Oct 1 2024, 03:06:41) [MSC v.1941 64 bit (AMD64)]
Python Numpy Support: On
Python Numpy Path: C:\Program Files\ParaView 6.1.0\bin\lib\site-packages\numpy
Python Numpy Version: 1.26.4
Python Matplotlib Support: On
Python Matplotlib Path: C:\Program Files\ParaView 6.1.0\bin\lib\site-packages\matplotlib
Python Matplotlib Version: 3.7.2
Python Testing: Off
MPI Enabled: Off
ParaView Build ID: superbuild af9bb3207d40b64f97c64a9c319d483ff3b17d03 (!1332)
Disable Registry: Off
Test Directory:
Data Directory:
SMP Backend: TBB
SMP Max Number of Threads: 16
OpenGL Vendor: NVIDIA Corporation
OpenGL Version: 3.2.0 NVIDIA 595.79
OpenGL Renderer: NVIDIA GeForce RTX 3050 Ti Laptop GPU/PCIe/SSE2
Accelerated filters overrides available: No
Connection Information:
Remote Connection: No
