So that I can use “Warp by Vector” filter of paraview to animate stress contours(result_SIEQ_NOEU) while the mesh is deformed by result_DEPL vector for all time steps.
Both fields have same mesh.

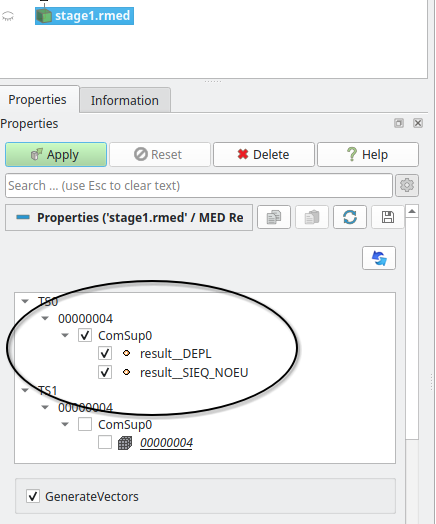

I have tried various techniques like Append Attributes, Group datasets, Resample with dataset etc. but could not achieve the above result. Some results with partial_prefix is created but when “Warp by Vector” is used , the drop down doesn’t have result_DEPL.
Tried with paraview latest as well as old versions.

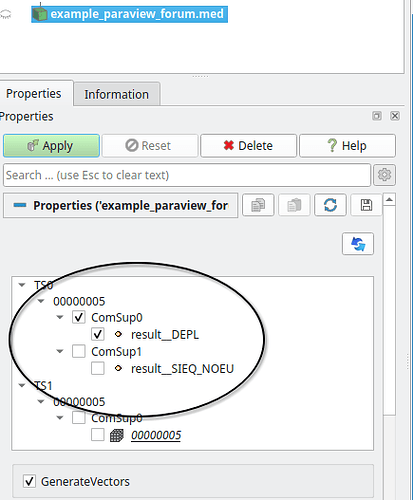

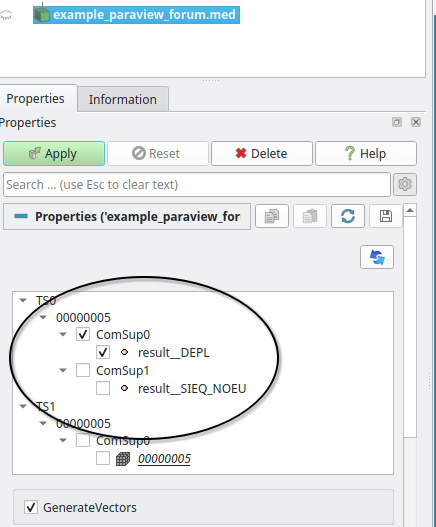

I attach sample med file here with distinct fields.

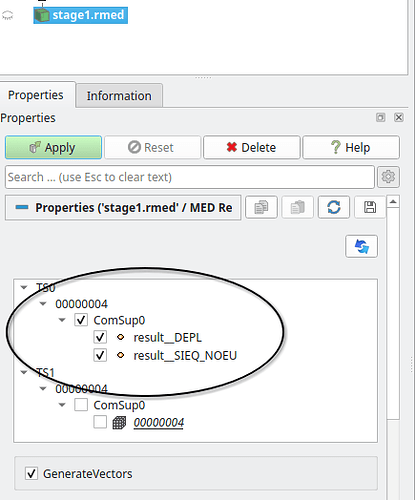

It is working now using resample with dataset .Isurely missed the check box like pass field arrays . Selected all of those and it worked.

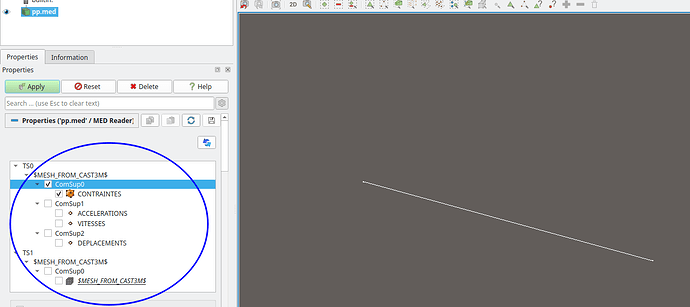

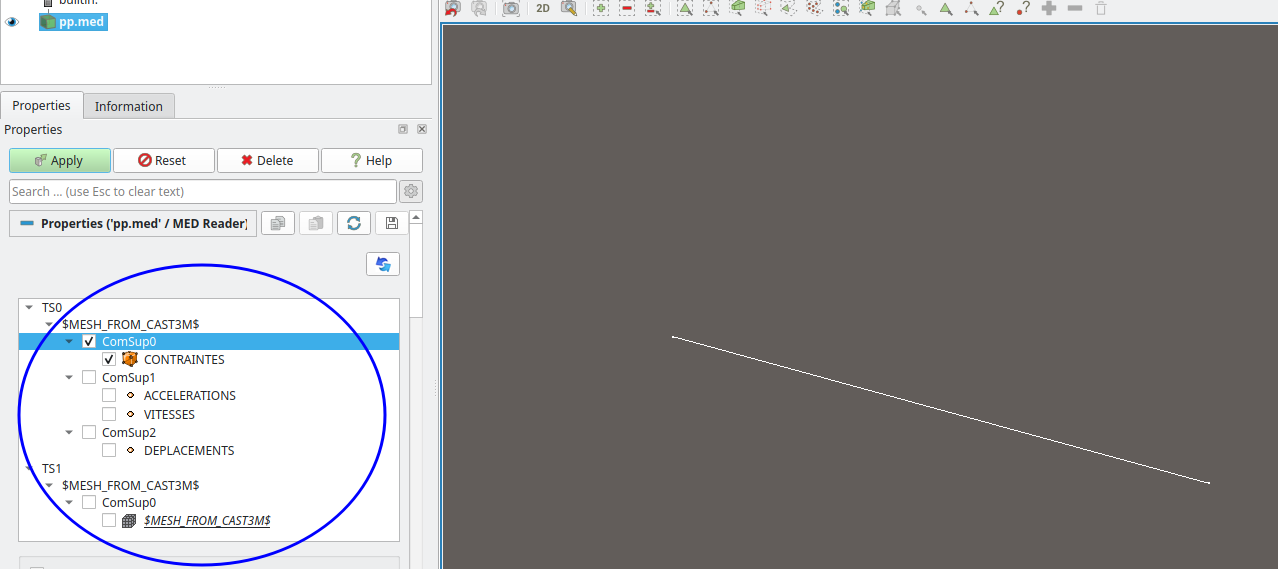

I have another issue.I also used CAST3M FEA software to export results of a simulation “PASAPAS” using “SORT MED” function. It creates a med file with again distinct fields as shown below. One is ELNO field called “CONTRAINTES”, Others are distinct Point field called “DEPLACEMENTS”, “ACCELERATIONS“, “VITESSES”
How can I join distinct fields also as requested above? Specifically merging ELNO cell fields and Point fields. So that I get all as Point Fields Under just one ComSup.
Please note the MEDReader plugin is not maintained by ParaView maintainers but by the salome team.
Looking quickly at it it doesnt look like the reader can read both at the same time, however you could open the file multiple times and then use AppendAttributes filters.
However, As I told before, Append Attributes filter does not work in any case. You can try with the attached .med file.
Resample with Dataset worked with all check boxes checked for arrays.
Still I would have preferred Append attributes to work since both fields have same mesh support.
I have a query.Resampling with Dataset is essentially same as Append Attributes for same mesh? Because I don’t want change of field values due to interpolation(or normalisation) during resampling.
But it drew a blank and I couldn’t see anything. Could you try with the an .rmed file here
This file has two seperate fields (one with 5 components like STA_NL_DEPL, STA_NL_SIEQ_NOEU etc) and other with CONT_NOEU. I wasn’t able to join them together into 1 object.(SO I can view CONT_NOEU while making it warp by using STA_NL_DEPL filed)

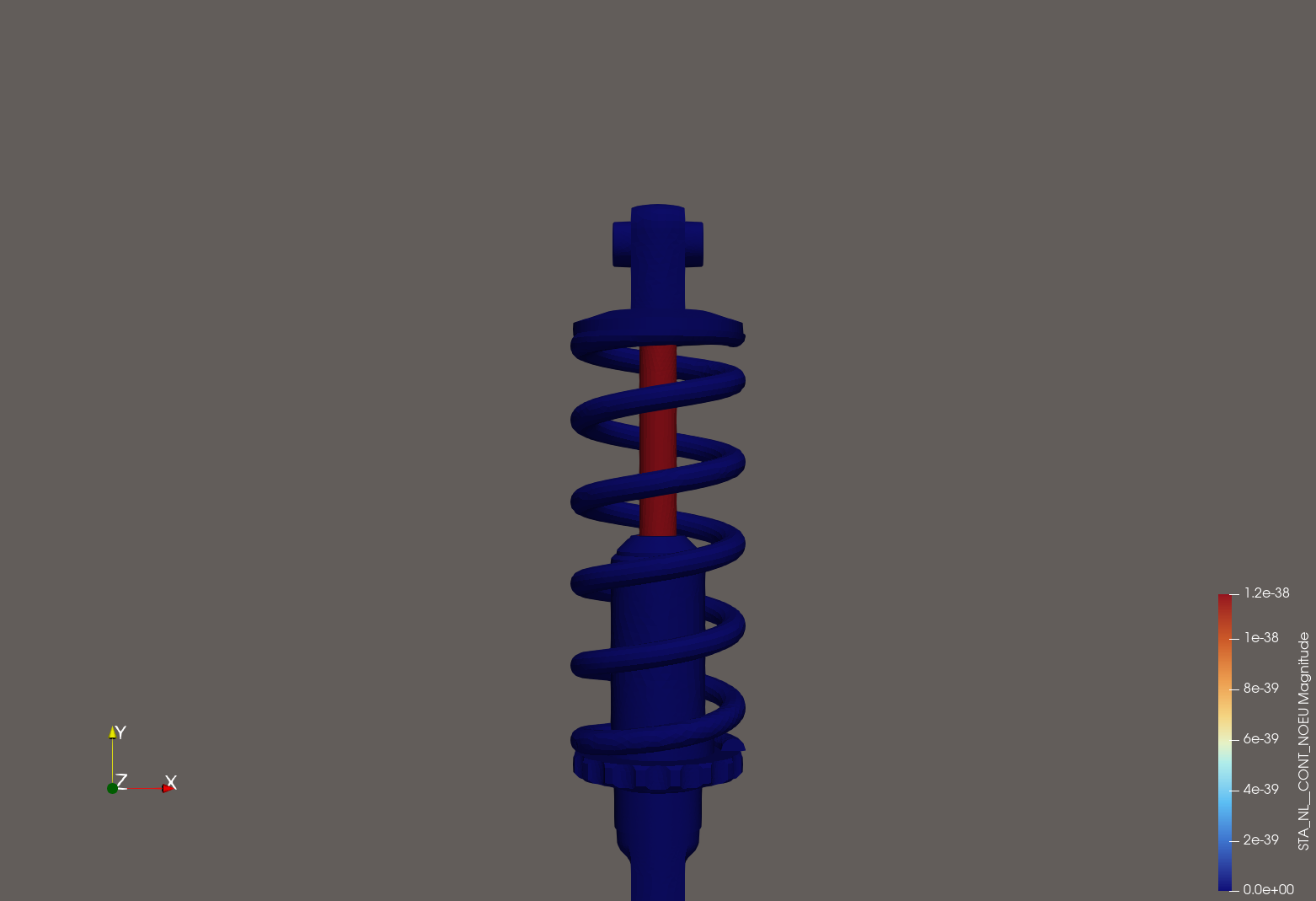

Again as a side note, I have tried resampling on smaller .rmed before and it worked sometimes. But the results were inaccurate. Some white patches are created on result output(all data pass arrays checkboxes were on)
