glyph always has white arrows pointing to the x direction?

ParaView Support
1

Hello,

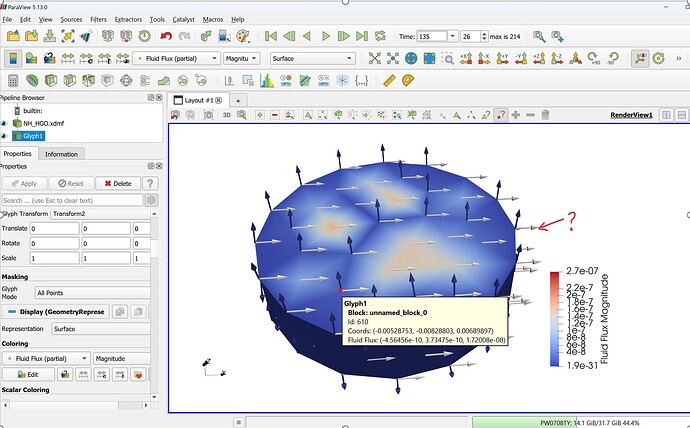

I was modeling the fluid flux within a cylindrical material sample. However, when I used the glyph to create arrows to visualize the fluid flux (a vector variable in my case), the plot always returned some weird white arrows pointing to the x direction which is not consistent with any one of the components of the fluid flux variable. Those white arrows appeared when I visualized the displacement variable too.

Is there any way to fix this issue? I have included my dataset ( “NH_HGO.h5” and “NH_HGO.xdmf”) Thank you in advance for your help!

image1920×1193 174 KB

NH_HGO.h5 (1.4 MB)
NH_HGO.xdmf (257.8 KB)

2

Hi,
Just above what you are showing in the Property Editor, you should find Orientation and Scale. Orientation should be your vector property.
HTH, Venke

3

For some reason you have duplicated geometry for each of your fields, as a multiblock.

Use ExtractBlock filter first.
