Help using ImageReader and .raw files

ParaView Support
1

Hello, I am having some trouble getting my data to load. It is currently in .raw format and I obtained it from the 2004 IEEE Viz contest. When I load the data, I set the data scalar type to float, byte order to BigEndian and data extent to (0,499,0,499,0,99). I also change the representation to Volume. Each variable has 48 time steps, and I get the same result whether I load one time step or all 48. For example, if I load QCLOUD this is the result I get:

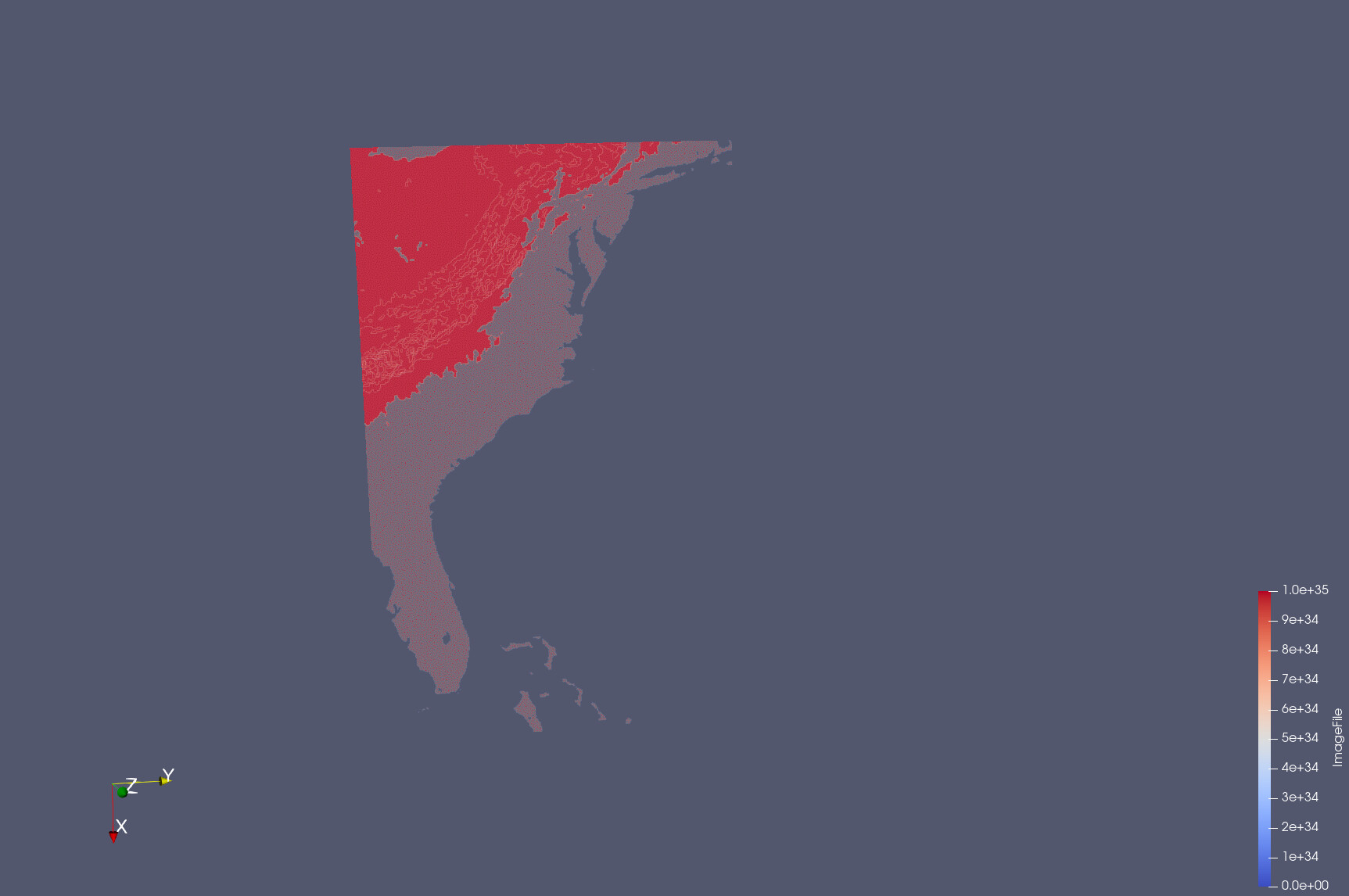

QCloud
QCloud1725×1146 123 KB

In addition, here is the link to the dataset and information about the dataset:

Any help would be appreciated.

2

Its a 34G dataset. Do you have something smaller that shows the same issue ?

3

Unfortunately I do not. It is possible to only download one data file though. I was doing some more research into what the issue is, and interesting enough I did find this link:

https://www.paraview.org/Wiki/ParaView/Data_formats

The section Read a Raw File into Paraview uses the same data as an example. However, I don’t understand what the example is showing exactly.

4

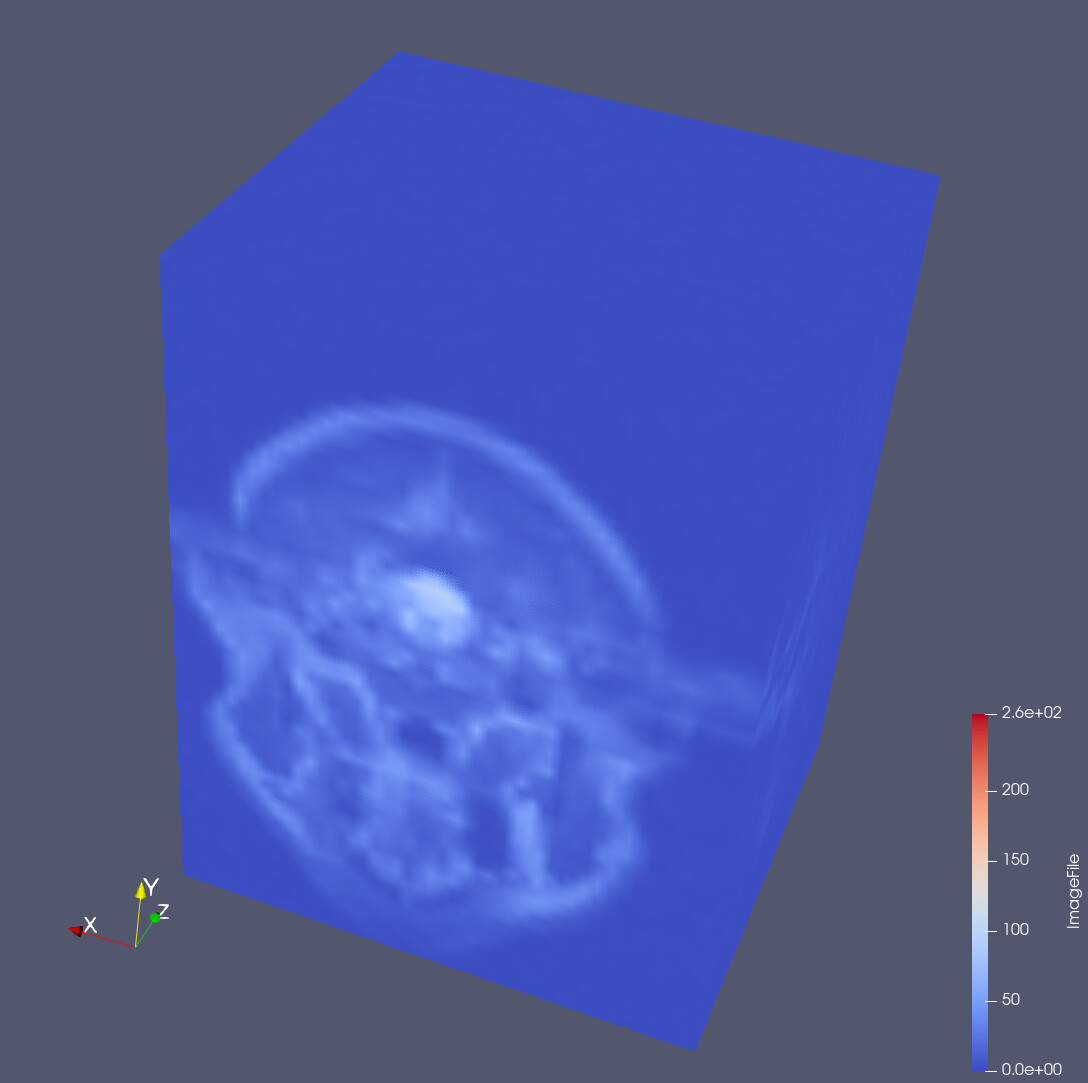

If you want to see a .raw file in ParaView working without issue, here is one:

HeadMRVolume.raw (122.1 KB)

raw.pvsm (206.7 KB)

image1088×1083 60.8 KB

5

Here are couple examples of how the data should look with iso-surface extraction and volume rendering:
Qcloud_Isosurface
Qcloud_volume

I am just wondering why when I load the data and change the representation to volume, I only get an outline of the coastline and no actual data. The same goes with iso-surface extraction.

6

The issue has been solved. Although the link mentions the data is in float, I changed the data type to int and it comes through now.
