How to Properly Display XYZ-Format Data

ParaView Support
1

The data in XYZ format appears normal when viewed in other software, but displays incorrectly in ParaView.

How to solved this problem?

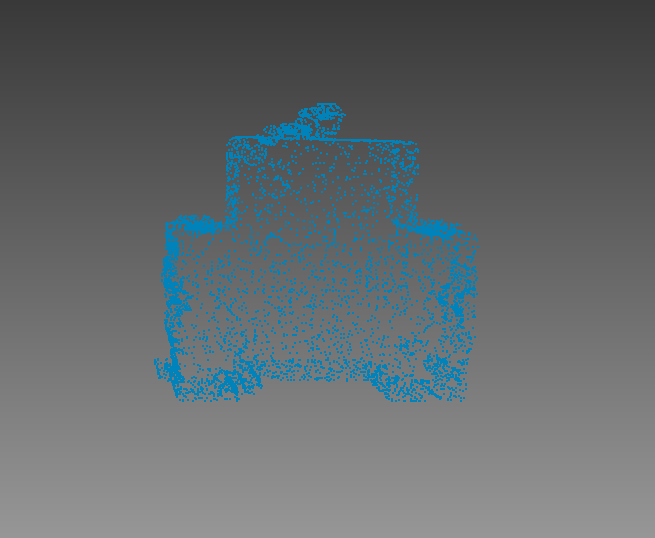

image411Γ—561 34.1 KB

image655Γ—538 8.96 KB

image1919Γ—970 77.1 KB

2

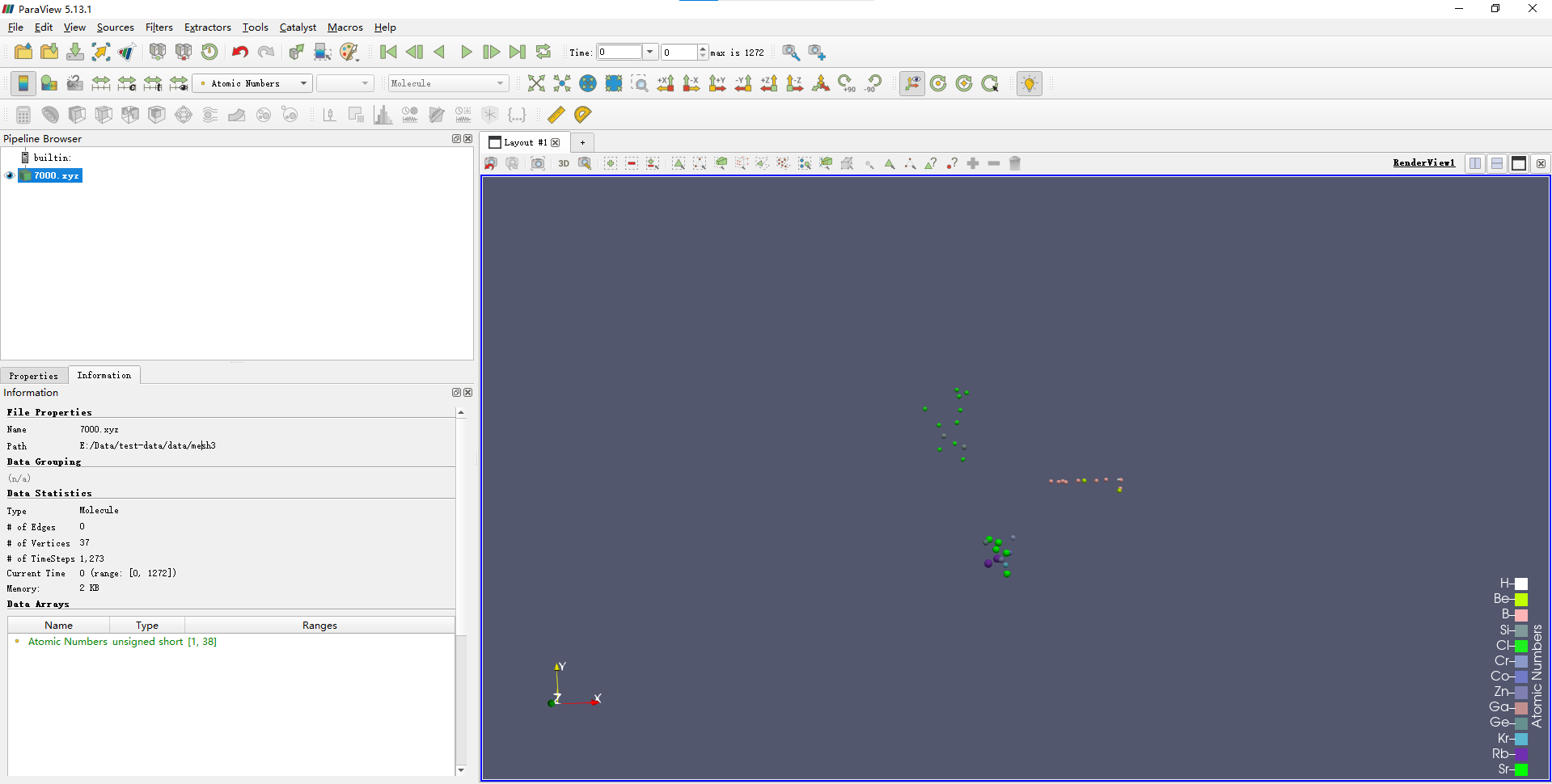

You are opening this file using a molecule reader (xyz is a popular molecule format). Use the correct reader for your data instead ?

3

For example, the Delimted Text reader.

1 Like
4

I renamed the data with .txt/.csv extensions
but couldn’t open it properly using:

  • CSV Reader
  • GDAL Vector Reader
  • PDAL Reader

What should I do exactly?

5

please share your data.

6

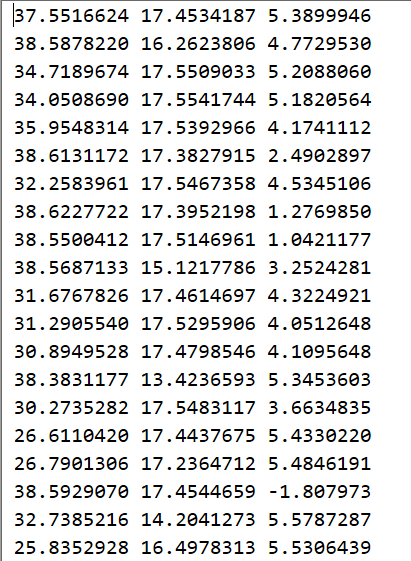

data：

7000.xyz (233.7 KB)

7
  • run ParaView
  • File β†’ Open β†’ Files of types β†’ All files (*) β†’ 7000.xyz β†’ CSVReader
  • Uncheck HaveHeaders, use " " for Field delimiter char, press Apply
  • Filters β†’ Alphabetical β†’ TableToPoints β†’ X - Field 0 / Y - Field 1 / Z - Field 2, Apply

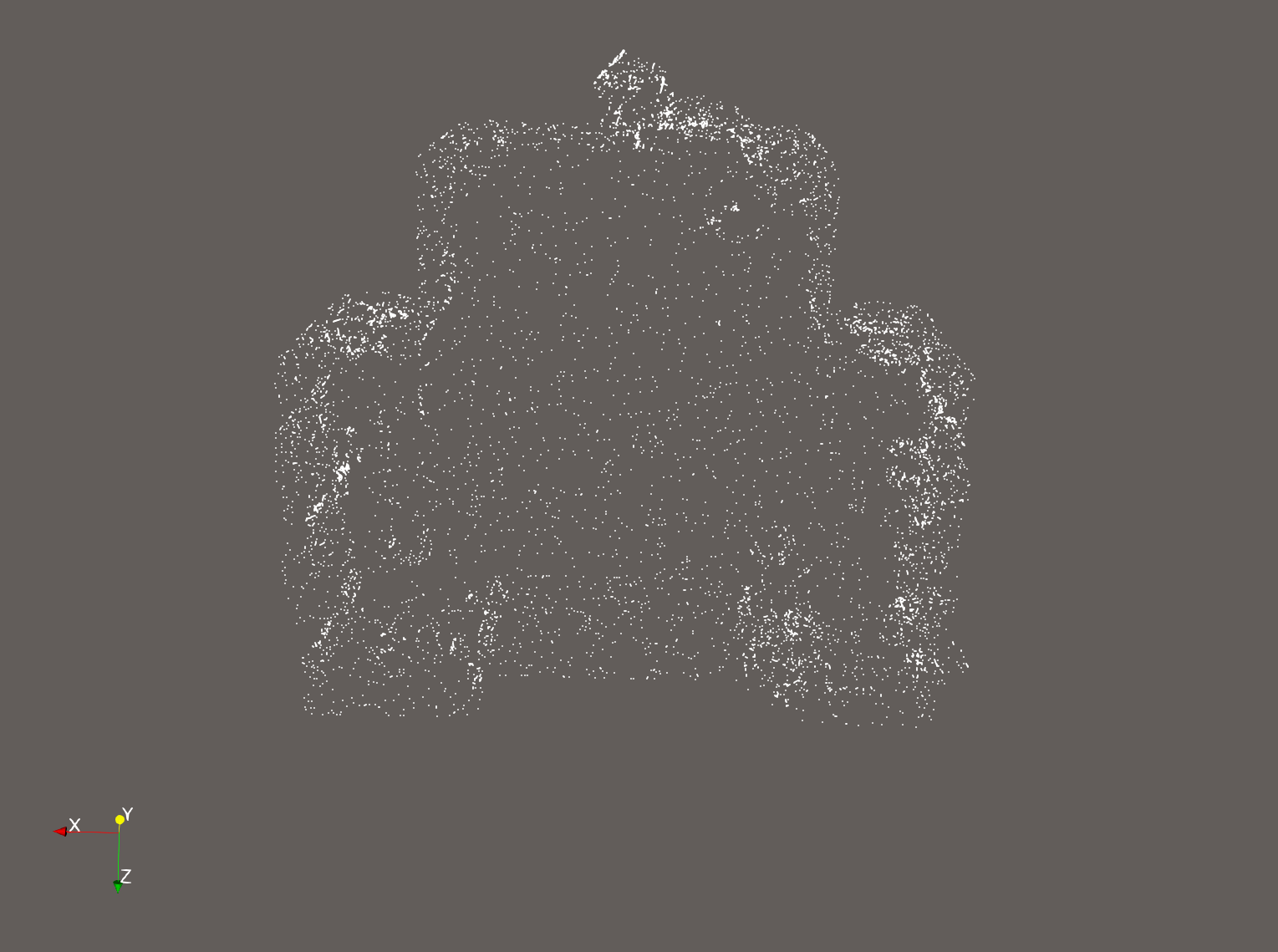

image1529Γ—1139 46.2 KB

Here is a statefile is that helps:

ttp.pvsm (197.2 KB)
