Paraview clip does not display the mesh correctly

[nux-foam]

Hi,
I have created a fully hexahedral O-grid mesh using blockMesh and extrudeMesh in openfoam6 for a pipe with bends.

When I see the mesh in default view, it looks fine. But if I take a clip plane or slice parallel to the perpendicular to the pipe length, the mesh shows up with extra edges.

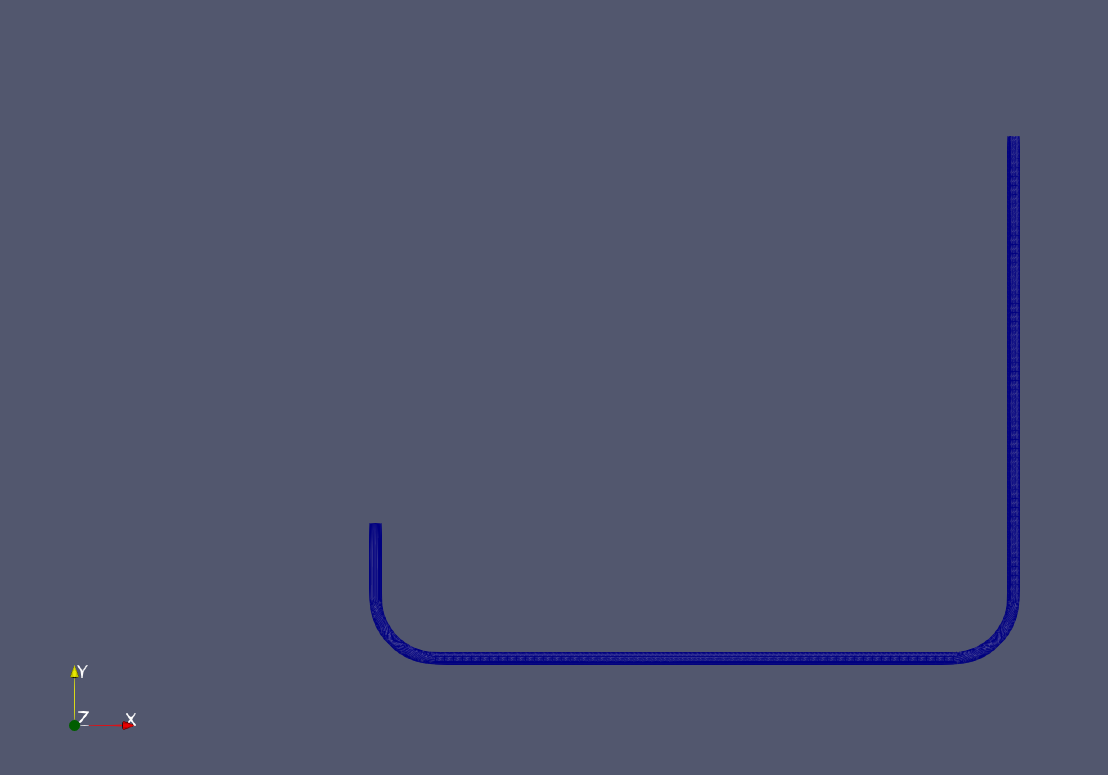

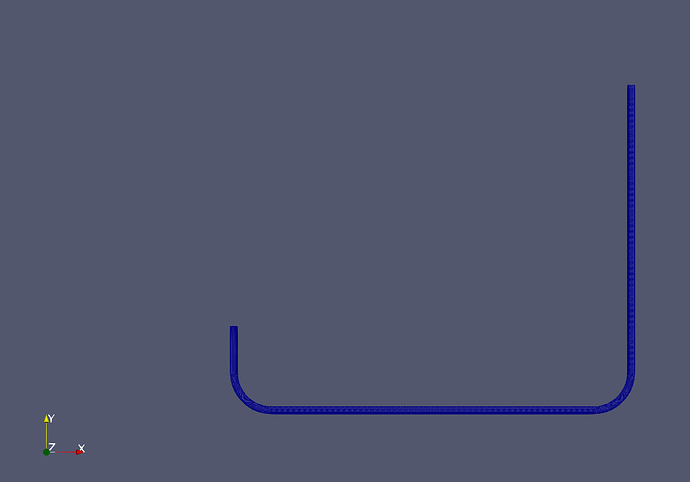

Overall Geometry:

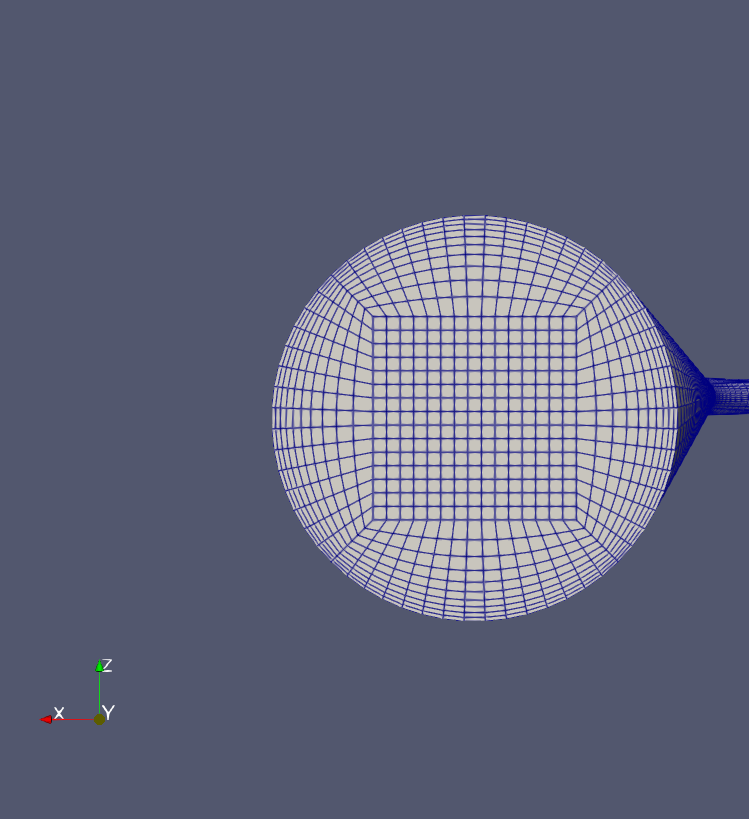

Normal View:

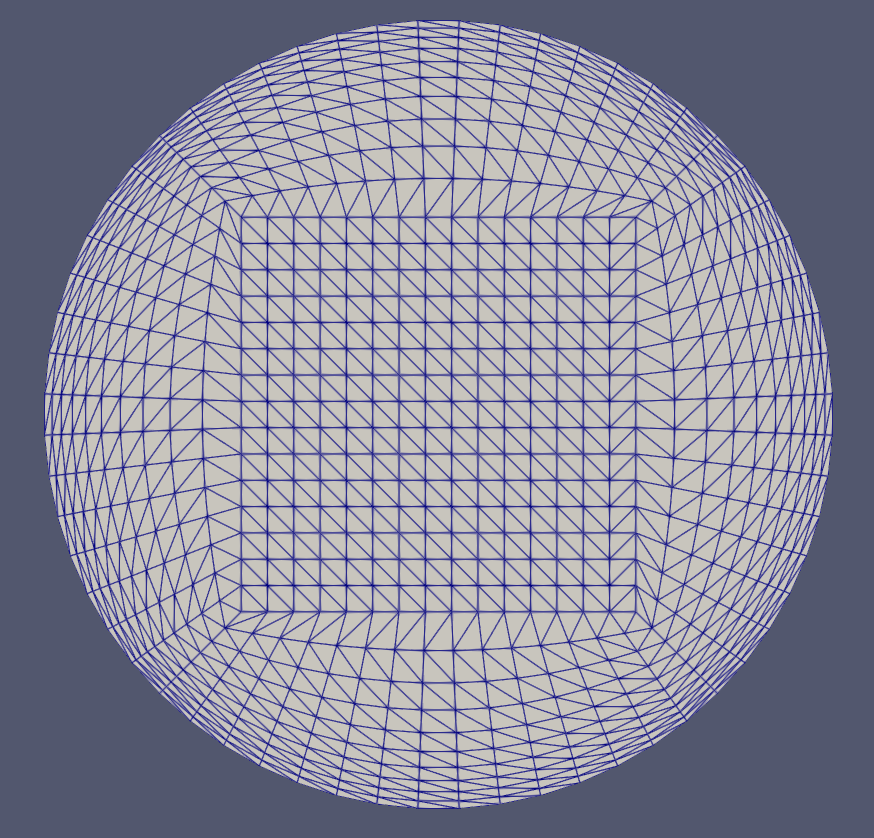

Slice View:

[mwestphal (Mathieu Westphal (Kitware))]

please share your data.

[pcrepier]

Just turn off the triangulation of the slice in the slice’s advanced properties. You’ll get your quads back this way.

[nux-foam]

Thanks. This worked perfectly.
