Plotting data along curved line along the perimeter of circle

ParaView Support
1

Hi

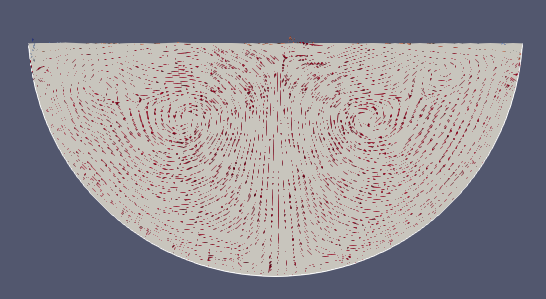

I want to plot data along the circumference of the cross-section as shown in the attached image. I want to plot the wall shear along the perimeter of the pipe c/s. How should i proceed about this? I tried intersection of curves but it is not working.. thanks

cross-section_polyline
cross-section_polyline546×299 46 KB

2

Please share your data.

3

Hi,
I have shared my data. I want to plot some property along the circumference of any cross-section of the pipe.

4

Use PlotOnIntersectionCurve filter

5

Actually i tried it but it was not doing anything-let me try once agian.

6

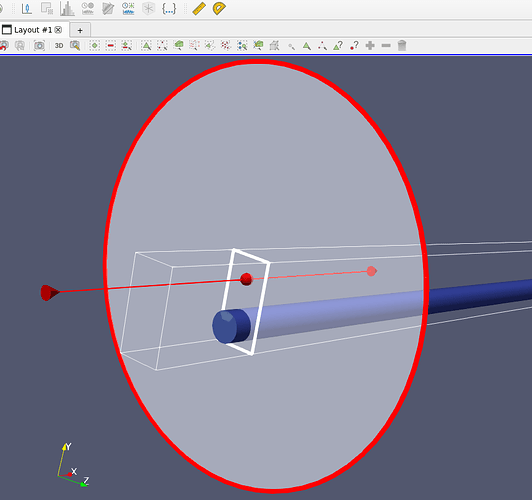

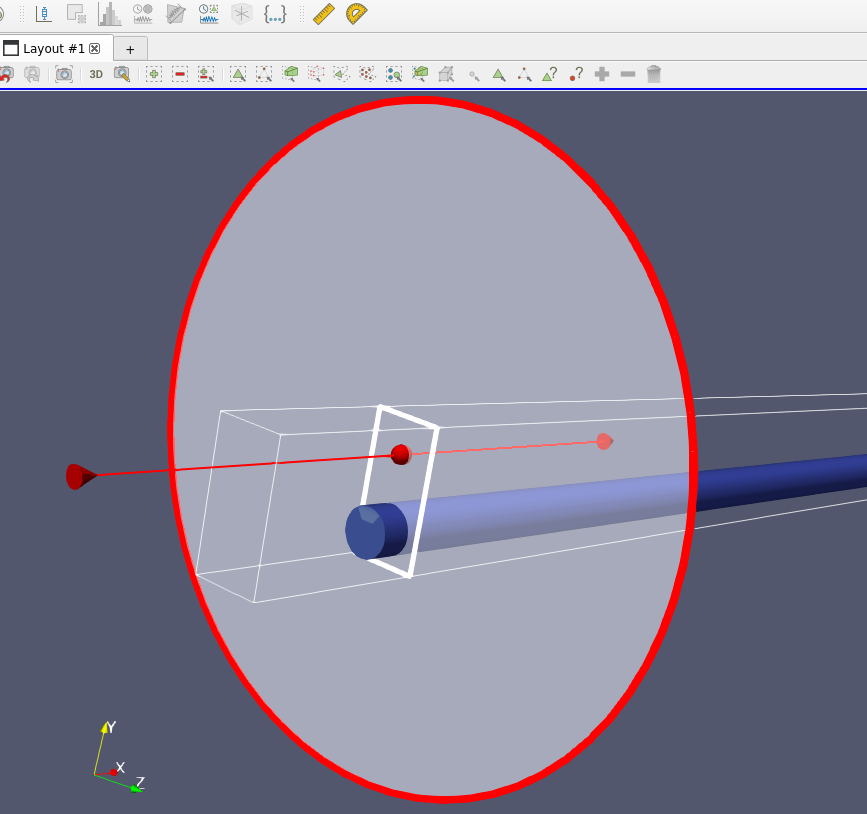

So, when i do plotonintersection, it will plot the data along the line of intersection of the chosen plane and the 3D geometry? is that the thing? i have attached the figure from paraview for reference.

plotonintersection_images
plotonintersection_images867×814 39.3 KB

7

Yes, is that not what you want to do ?

I want to plot the wall shear along the perimeter of the pipe c/s

8

Yes, thanks
