Hello there,

I’m running ICFD analysis on LS-DYNA with VTK or VTU output for Paraview.

Problem is, when i load the results in Paraview i cannot seperate my different surfaces (to plot the shear stress per part for example).

I’d like to know if there is a way to seperate each surfaces please. I already tried the multi block inspection, it returned this error :

ERROR: In vtkExtractBlockUsingDataAssembly.cxx, line 222
vtkExtractBlockUsingDataAssembly (00000203ACE78ED0): Input is missing.

ERROR: In vtkExecutive.cxx, line 730
vtkPVCompositeDataPipeline (00000203AEC545B0): Algorithm vtkExtractBlockUsingDataAssembly (00000203ACE78ED0) returned failure for request: vtkInformation (00000203AD67B470)
Debug: Off
Modified Time: 1238958
Reference Count: 1
Registered Events: (none)
Request: REQUEST_DATA_OBJECT
FORWARD_DIRECTION: 0
ALGORITHM_AFTER_FORWARD: 1
FROM_OUTPUT_PORT: 0

ERROR: In vtkExtractBlockUsingDataAssembly.cxx, line 222
vtkExtractBlockUsingDataAssembly (00000203ACE78ED0): Input is missing.

ERROR: In vtkExecutive.cxx, line 730
vtkPVCompositeDataPipeline (00000203AEC545B0): Algorithm vtkExtractBlockUsingDataAssembly (00000203ACE78ED0) returned failure for request: vtkInformation (00000203AD67B470)
Debug: Off
Modified Time: 1238958
Reference Count: 1
Registered Events: (none)
Request: REQUEST_DATA_OBJECT
FORWARD_DIRECTION: 0
ALGORITHM_AFTER_FORWARD: 1
FROM_OUTPUT_PORT: 0

Thank you in advance for your answers.

2

please share your data

3

You can access the results with this link : https://wetransfer.com/downloads/4965ade417abc54aa2bb30d02ec84e3920250523130120/af83fd631575f8744391a6abd7520ce620250523130121/a54c36?t_exp=1748264481&t_lsid=068d4e36-7abb-4a0e-86ed-8894163c4370&t_network=email&t_rid=Z29vZ2xlLW9hdXRoMnwxMDIxNzA4NjUyNTQyOTIxNzI3OTA=&t_s=download_link&t_ts=1748005281

4

Your data open fine in ParaView. What do you mean by “a way to seperate each surfaces” ?

5

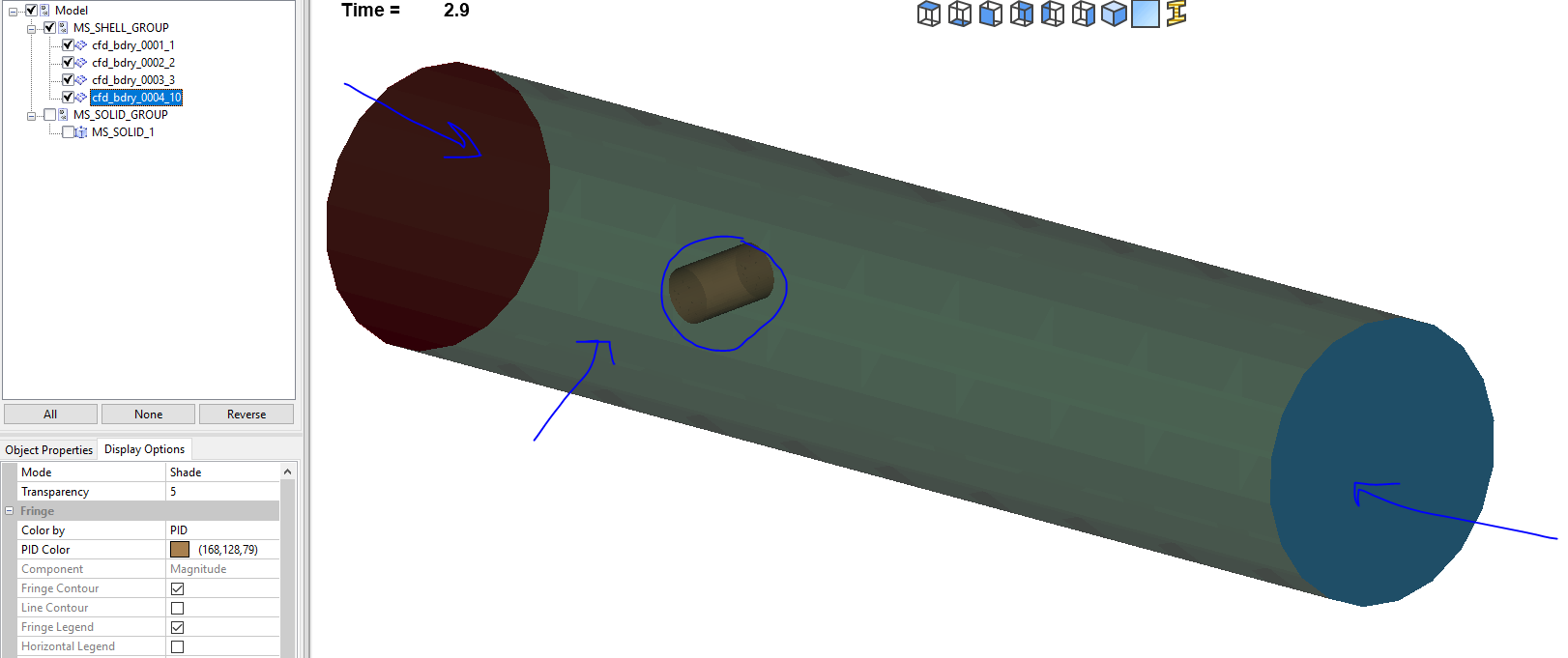

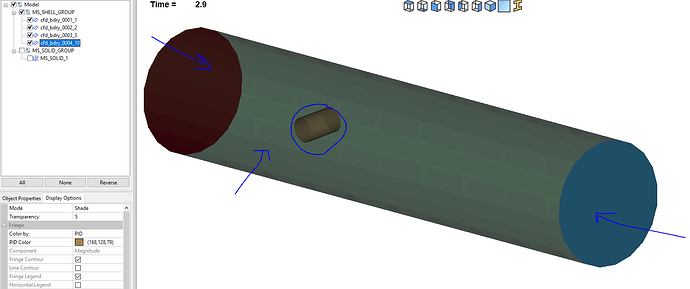

In reality, there are several surfaces in the model (see attached picture)

part2
part21622×681 44.7 KB

I would like to have them displayed in Paraview to plot the surface shear on the smaller cylinder

6

It seems that i just have access to the volume plot and not the surface plot in ParaView

7

Well, this is what is contained in the file you shared. It does not contains the surface. You may want to check if the surfaces can be exported from LS-DYNA

8

All right then, i will ask this to the LS-PrePost developpers, thank you.
