Size of coordinates orientation axes in high res images

ParaView Support
1

I’m trying to export some of the lovely visualisation I’ve made with paraview but in high resolution.

I’m having a problem with the visibility of the orientation axes - they are not initially very clear and become even less obvious as the resolution increases. See the two example images below.

Here’s the standard screen resolution one:

test_standard
test_standard1505×906 61.6 KB

And here is an 8K image where the orientation axes is incredibly difficult to see:

test_high_res
test_high_res1920×1080 30.6 KB

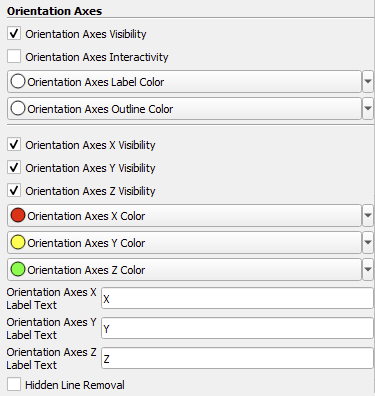

While I could improve the visibility by switching the yellow to some other colour, the labels and thickness of the arrows is a problem as there seems to be no way to edit these.

image375×396 10.4 KB

Have I missed an option somewhere else that controls these?

2

Oh, and here’s the interactively resized on screen:

image1501×900 60.4 KB

And high res-export:

test_high_res_interactive_resize
test_high_res_interactive_resize1920×1080 34.1 KB

Which really has had almost no effect on the exported image. I’ve also switched the yellow to blue but that is not even noticeable.

3

The camera widget is better for visibility but you get 3 extra “dots” that seem strange on an image export and it lacks customisation on tube width, length, colour etc.

test_high_res_camera_widget
test_high_res_camera_widget1920×1080 27.5 KB

4

hello @jpmorr,

I reproduce the issue too when saving screenshot of 2k,4k,8k.

A workaround could be to use the preview feature before saving the screenshot.

This option is in View > Preview then select your resolution (if it’s not available you can add a custom preview resolution).

Does it work for you?

5

Thanks @Lucas_Givord for this workaround.

Using preview and then changing the font size of the legend should work. It’s a few extra steps but solves the tiny axes problem.

normal export:

test-high-res
test-high-res3840×2160 222 KB

from preview:

test-high-res-preview
test-high-res-preview3840×2160 203 KB

Preview also seems to work well enough for multiple views:

test-high-res-dual-preview
test-high-res-dual-preview1920×1080 47.8 KB

However there is still an issue when interactively sizing the axes - once you enlarge it, you can’t pull it back down to the corner as the position is limited by the bounding box and it doesn’t allow any part of it to be positioned off screen. As you can seen in the single preview image, the axes is now in a somewhat strange central position as there’s notmuch that can be done about that it seems.

I think the preview workaround is a good solution for now.

6

it could be worth to open an issue on paraview for that, do you think you can do it?
