surface with edges representation in 5.7

gbug · October 15, 2019, 1:19pm

Hi!

I’ve noticed render problems with Surface with edges representation and unstructured meshes (vtu) in 5.7 (see screenshots):

Is it a known problem? Tried run with -dr option – didn’t help.

env: debian testing amd64 with KF5, PV downloaded from the site (py3.7).

Kenichiro-Yoshimi · October 16, 2019, 12:14am

I have the same problem as described by Gena Bug. I’m using ParaView 5.7.0 on Windows 10 with an NVIDIA GeForce RTX 2080 Ti.

wascott · October 16, 2019, 12:44am

Looks good to me. I checked software rendering (remote server) and Windows hardware rendering (NVIDIA Quadro M4000).

Kenichiro-Yoshimi · October 16, 2019, 1:23am

Parallel projection mode seems to cause the crosshair artifact. Indeed, for perspective view it works well.

wascott · October 16, 2019, 1:27am

Kyoshimi,
Well done. I have replicated the bug. i will write it up.

Alan

wascott · October 16, 2019, 1:49am

Bug has been written up here: https://gitlab.kitware.com/paraview/paraview/issues/19398. I wrote it up for ParaView 5.8.0, but it very likely will slip to 5.9.0. 5.8.0 is both already full, and coming quickly (early winter).

wascott · October 17, 2019, 2:14am

This can be worked around by going into Edit/ Settings/ Render View/ Line Offset Parameters, and changing -4 to a MUCH smaller number, such as -0.1.

gbug · October 17, 2019, 10:02am

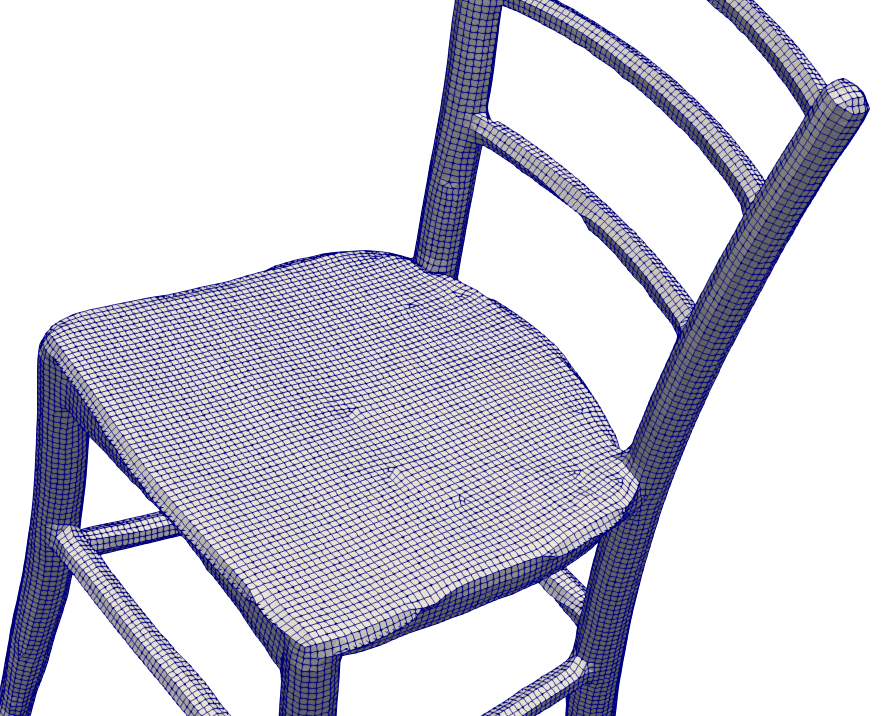

Thanks for the workaround, it really helps. However I should mention that in my case mesh in perspective projection looks better than in parallel:

wascott · November 28, 2019, 3:05am

I wanted to mention that this is being worked in https://gitlab.kitware.com/paraview/paraview/issues/19437/ It has become a big enough issue we will try to get it into 5.8, out this winter.
