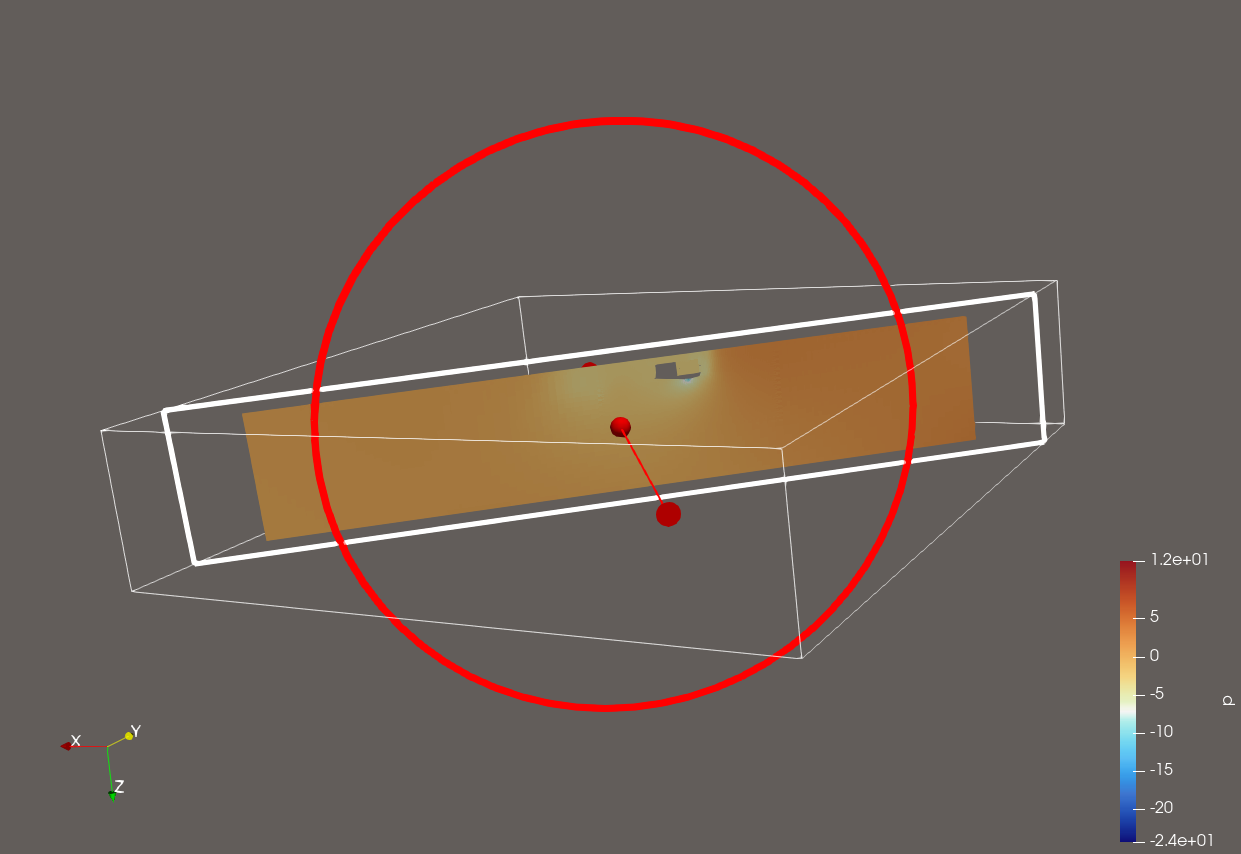

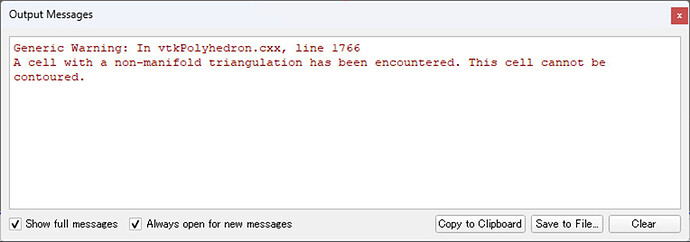

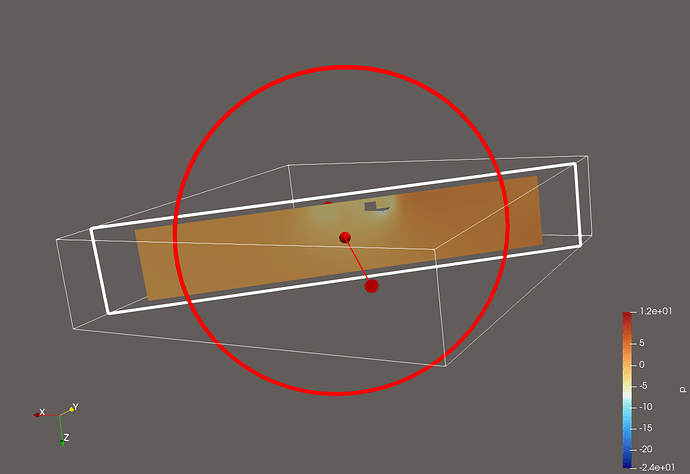

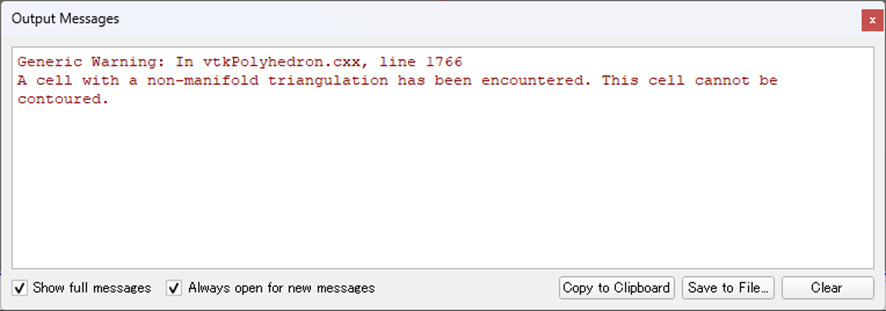

I unsuccessfully visualized the slice of cfd simulation results conducted using OpenFoam. In the beginning when I used a model without thickness, I could visualize the slicing. But, when I simulated some models with thickness, I could not get the image, but just received the attached message. Please advice.
Please share your data.
CVHP000ct.hvac (346.4 KB) Here is the file. I used openfoam in BIM HVACTool.
Please share a data ParaView can open.
simpleFoam.log (75.0 KB) I have this file and paraview.foam file. But, the last one has 0 KB and cannot be uploaded.
please zip the whole directory containing the .foam file and upload it.
Perhaps this file. Thank you.
I met difficulties in uploading the files, though I have split into 4 folders and zipped.
May I send these files via email?
use wetransfer.com
Dear Matheu Westphal,
Thank you for your message. It appears that the issue may be related to my ParaView setup. Initially, I was able to visualize the Cp values using the Calculator (equation) filter, and the equation itself worked correctly. However, the resulting Cp field was merged with the existing p and U fields. When I later attempted to modify the equation, it no longer functioned as expected.
In your opinion, would it be advisable to uninstall ParaView and perform a clean reinstallation?
Which version of the paraview app is the most stable?
Sure
Which version of the paraview app is the most stable?
The latest full release, aka ParaView 6.0.1
