Using VR device add a crop plane to crop a 3D model, the remained model is not solid

Hello Everyone

i want to Add a crop plane through the VR device, and the cropped model is solid

I’m using ParaView 3.13.0 to visualize a model.vtu file
with the XRInterface plugin, steamVR is runtime, HMD is HTC vive
using Add Crop Plane operation


like this

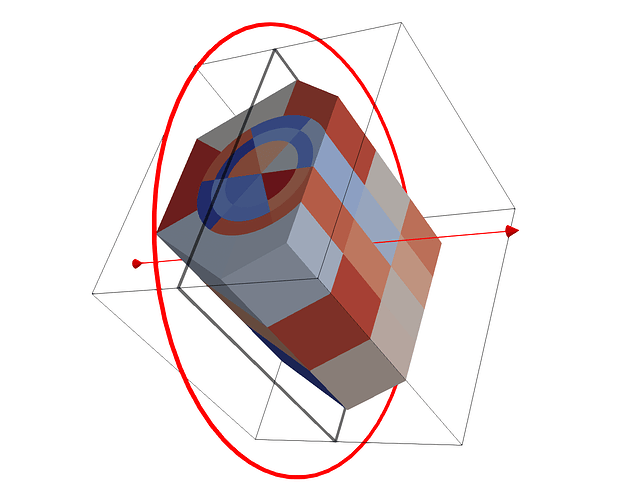

moving the model across red box, the result like this

As you can see, the interior of the model is not rendered, in short, the model is not solid after cropping.
If I perform the crop operation in the paraview, then the model after the crop is solid

i want to Add a crop plane through the VR device, and the cropped model is solid

Hi @JIERSHAO

As you point out, the crop plane is not doing a slice operation as the clip filter does.
It sadly is not supported (yet) to do an true interactive clip in VR, however if you use the “Shrink” filter with a factor of 1, you can approximate the behavior and see internal cells.

I hope this helps,

think you for your reply, but I made an expression error in the previous question. I am using ParaView 5.13.0, not ParaView 3.13.0.


So, If I am using the ParaView 5.13 series with the XRInterface plugin, can the remaining part of the model be solid after performing the “add crop plane” operation to crop the 3D model?

Bonjour Monseur!

i tried to use the “Shrink” filter with a factor of 1. The results before and after the “Add crop plane” operation are shown in the following figure:

As we can see, by using “Shrink” filiter, after cropping the model, The model has some small pieces. But the results of rendering looks like a beehive. In fact, all I need to do is render this cutting surface.
For examples, as shown in the following figure, using "clip"operation in ParaView, it just renders the cutting surface.

Thanks again for your patience in replying!

I’m afraid this is not supported, but it would be very nice to add this!
